(Capacity Available - 60 BBL, 115BBL, 210 BBL)

TORNADO™ TECHNOLOGIES INC. has designed the Enviro-Guard System. The Enviro-Guard System ensures that liquids produced into the main storage tank cannot be spilled onto the surrounding soil. The large secondary containment enclosure serves more than one purpose. It supports and secures the system on the ground because of the many square inches of contact area provided by the square base. It can be internally coated with urethane foam to insulate and keep the heat inside to eliminate freezing. Liquid level indication is an easy to read Stainless Steel float assembly. There is a load line spill reservoir to catch fluids that may escape during hooking up hoses for loading purposes. The internal tank can be designed for 15 PSI to 250 PSI if required. The internal tank can be removed for inspection or repair if ever required. The internal tank can be internally coated if requested.

Multiple uses such as: Flare Knockout Drums, Wellhead Production Storage, Dehydrator Stihl Column Condenser, Fuel Storage and more.

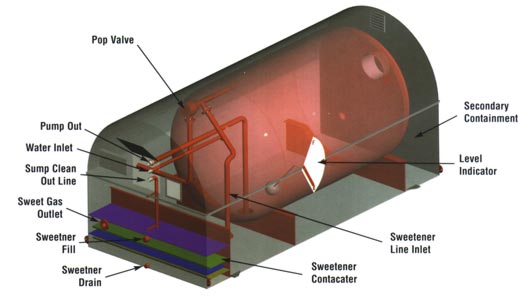

ENVIRO-GUARD Fluid Storage Tank c/w Sweetener

(Capacity Available - 60 BBL, 115BBL, 210 BBL)

TORNADO™ TECHNOLOGIES INC. has designed the Enviro-Guard System with Vent Gas Sweetener for those locations that produce low volumes of liquids at a small percentage of H₂S. The Enviro-Guard System ensures that liquids produced into the main storage tank cannot be spilled onto the surrounding soil. The large secondary containment enclosure serves more than one purpose. It supports and secures the system on the ground because of the many square inches of contact area provided by the square base. It can be internally coated with urethane foam to insulate and keep the heat inside, to eliminate freezing. All load lines and pop valve lines are housed inside also to prevent freezing. Liquid level indication is an easy to read Stainless Steel float assembly. There is a load line spill reservoir to catch fluids that may escape during hooking up hoses for loading purposes. The internal tank can be designed for 15 PSI to 250 PSI if required. The internal tank can be removed for inspection or repair if ever required. The internal tank can be internally coated if requested. TORNADO™ TECHNOLOGIES INC. has also added an ammonia contactor tank to these units to sweeten small volumes of vent gas that can be a real odor problem. These sweeteners will help you keep your surrounding neighbors happy.

Multiple uses such as: Flare Knockout Drums, Wellhead Production Storage, Dehydrator Stihl Column Condenser, Fuel Storage and more.

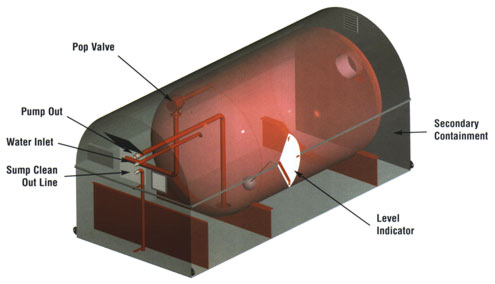

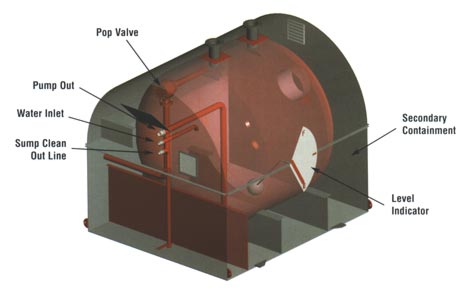

ENVIRO-GUARD Fluid Storage Tank

(Capacity Available - 60 BBL, 115BBL, 210 BBL)

TORNADO™ TECHNOLOGIES INC. has designed the Enviro-Guard System. The Enviro-Guard System ensures that liquids produced into the main storage tank cannot be spilled onto the surrounding soil. The large secondary containment enclosure serves more than one purpose. It supports and secures the system on the ground because of the many square inches of contact area provided by the square base. It can be internally coated with urethane foam to insulate and keep the heat inside, to eliminate freezing. All load lines and pop valve lines are housed inside also to prevent freezing. Liquid level indication is an easy to read Stainless Steel float assembly. There is a load line spill reservoir to catch fluids that may escape during hooking up hoses for loading purposes. The internal tank can be designed for 15 PSI to 250 PSI if required. The internal tank can be removed for inspection or repair if ever required. The internal tank can be internally coated if requested.

Multiple uses such as: Flare Knockout Drums, Wellhead Production Storage, Dehydrator Stihl Column Condenser, Fuel Storage and more.
