SEVEN IN ONE GAS
PILOT SYSTEM |
| |
|
 |
TORNADO™
TECHNOLOGIES now offers you the SEVEN IN ONE SYSTEM for large or small Flare
Stacks or Flare Pit applications.
FEATURES:
1) CONSTANT PILOT: For positive ignition under variable flow rates.
2) ENERGY EFFICIENT: Uses only 15 scfh - compare with others.
3) CERAMIC NOZZLE: To ensure long life and dependability of the pilot.
4) PILOT RE-IGNITION: High energy Internal Spark for Pilot Re-ignition.
5) EXTERNAL ELECTRONIC IGNITION: High energy external spark for Flare Gas ignition.
6) THERMOCOUPLES (Optional): To monitor Pilot and Alarm status.
7) TOTALLY RETRACTABLE: Allows easy inspection or servicing at ground level without costly cranes.
|
 |

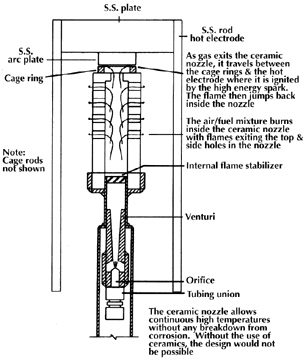

The above features
incorporate SEVEN Flare Ignition options into ONE. The constant pilot
assures ignition of all flare gases exiting the flare tip or line. The
pilot itself is energy efficient using only 15 scfh of fuel gas. The pilot
re-ignition consists of a high energy internal spark that relites the
pilot premix every forty (40) seconds. The external electronic ignition
consists of an external high energy spark jumping a gap, to ignite the
flare gases in the wind shroud. This also sparks every 40 seconds,
insuring another source of ignition. The Ceramic Nozzle extends the life
of the pilot significantly, due to the non-metallic composition. The
TORNADO™ SEVEN in ONE System has been tested in the most severe conditions
in the Oilfield.
|

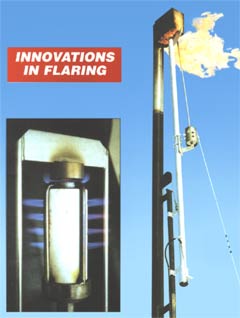

TORNADO™
SEVEN IN ONE RETRACTABLE IGNITOR |
|
|
North America's
Most Sophisticated Pilot & Ignition System |
OPTIONS:
• 12V, 12V solar, 24V, 110V A.C. with battery back up. All A.C. units come with
battery back up to assure ignitions under power failure conditions.
• Other voltages available upon request.
• Remote mounting of control panel.
• Remote manual ignition.
• Strobe Light to determine if spark cycle is occurring.
FLARE STACKS:
TORNADO™ FLARE STACKS, custom built by TORNADO™ TECHNOLOGIES, are competitively priced
stacks for sweet or sour service. Free standing or guyed single, dual, triple and air
assist stacks are available. These stacks are engineered and come as complete packages.
 |
OTHER
PRODUCTS:
In addition to TORNADO™ IGNITORS, the following products are also available from
TORNADO™ TECHNOLOGIES.
• Replace other gas pilots with a TORNADO™ IGNITOR replacement package.
• Standard Flame Arrestors
• Detonation Arrestors
• Custom stack tips
• Tank vapor control equipment.
• Trailer mounted flare systems.
• Custom built systems to suit your requirements.
• No burns hand held ignitors.
• Knockouts
• Special engineered flare tips available.
• Rental Flare Systems
• Computer stack sizing and radiation evaluation.
AND MORE!
SERVICES:
A complete range of services from start to finish are also available, including:
• Computer design and drafting of systems.
• Transportation of systems to assembly site
• Installation and testing of systems at location.
• Rental purchase plan.
|
